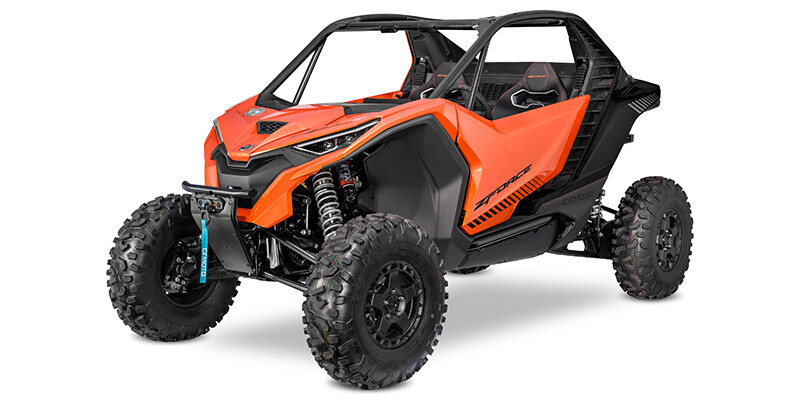

2025 ZFORCE Z10

2025 ZFORCE Z10

Description

The ZFORCE Z10 is made for adrenaline junkies. Push the start button on the steering wheel to fire up the all-new turbocharged triple-cylinder engine and prepare for launch. Navigate your experience with the 12.3” CFMOTO RideSync™ display with Apple CarPlay, your touchscreen link to connectivity and control. Our new OmniDrive™ continuously variable transmission delivers seamless transitions so fluid they slip by unfelt. And as for the rough stuff, those FOX® QSE shocks, adjusted via steering wheel controls and FOX app integration, level the gnarliest playing fields.

4,500 Lb. Winch with Synthetic Rope
Need to pull your buddy out of a jam or haul some serious weight? Our beastly winch with synthetic rope has got your back, no sweat.

12.3" CFMOTO RideSync™ Touch Screen Display with Backup Camera and LCD Display
Keep your eyes on the prize with our massive touch screen display. And thanks to the backup camera you’ll reverse with confidence. This is tech that makes your ride smarter and more fun than ever.

Half Doors
Jump in and out with ease. Our half doors give you quick access and keep the dirt where it belongs—outside. It’s protection and convenience wrapped in one sleek package.

Multi-Function Steering Wheel
Inspired by supercars, our multi-function steering wheel puts control at your fingertips, even including the vehicle’s start button. Adjust settings, pump up the volume, and stay in command without letting go.

FOX® QSE Shocks with Eibach Springs and 3 Adjustable Suspension Modes (Soft, Medium, Firm)
Conquer any terrain with our top-of-the-line suspension. ‘Soft’ for the comfort cruise, ‘Medium’ for the trail, and ‘Firm’ for the hardcore off-road action. Feel the difference with every bump you crush.

Specifications

  • Engine
    add remove
    • Cylinders
      3
    • Engine Stroke
      4-Stroke
    • Horsepower (bhp)
      143
    • Horsepower RPM
      7750
    • Torque (Ft Lbs)
      100
    • Cooling
      Liquid
    • Valve Configuration
      DOHC
    • Displacement (cc)
      998
    • Max power output
      143 HP @ 7750 RPM
    • Max torque
      100 LB-FT @ 7000 RPM
    • Drive
      2WD/4WD/4WD lock
    • Transmission
      OmniDrive™ CVT P/R/N/H/L
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (mm)
      3276.6
    • Width (in)
      64
    • Height (in)
      68.5
    • Wheelbase (in)
      99
    • Ground Clearance (in)
      14
    • Dry Weight (lbs)
      1863
    • Fuel Capacity (gal)
      9.9
    • Engine Displacement to Weight (cc)
      0.54
    • Turning Radius (ft)
      18
  • WHEELS & TIRES
    add remove
    • Front Tire Diameter (in)
      30
    • Rear Tire Diameter (in)
      30
    • Tread Type
      All Terrain
    • Front Tire Width
      10
    • Front Wheel Diameter
      14
    • Rear Tire Width
      10
    • Rear Wheel Diameter
      14
    • Front Tire (Full Spec)
      CST Pulse XT 30 x 10 - 14
    • Rear Tire (Full Spec)
      CST Pulse XT 30 x 10 - 14
  • BRAKES
    add remove
    • Front Brake Type
      Hydraulic Disc
    • Rear Brake Type
      Hydraulic Disc
  • Color options
    add remove
    • Lava Orange
    • Nebula Black
