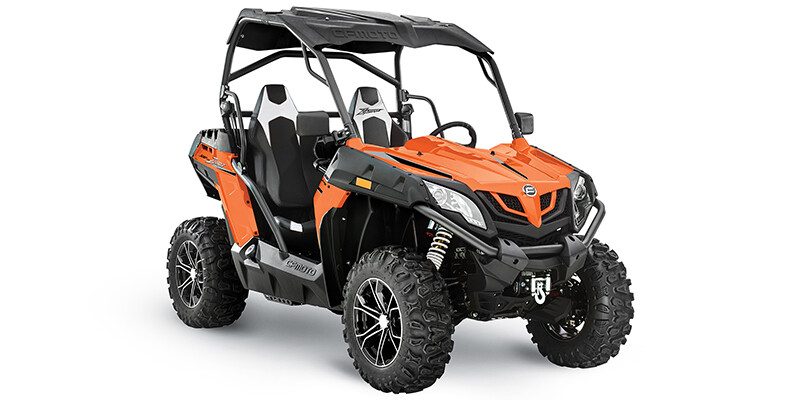

2021 ZFORCE 500 Trail

2021 ZFORCE 500 Trail

Description

Top Features

  • High-performance CVTech drive and driven clutches
  • 50” trail stance
  • Front & rear stainless steel bumpers
  • CFMOTO 14” alloy wheels
  • Compression and rebound adjustable shocks
  • Cargo & side nets
  • Tilt steering wheel
  • 11.2” ground clearance
  • Multiple storage locations
  • 3000 lb winch
  • Multi-function digital dash
  • Four wheel hydraulic disc brakes
  • Mechanical parking brake
  • ROPS Certified Cage

Specifications

  • Engine
    add remove
    • Cylinders
      1
    • Engine Stroke
      4-Stroke
    • Horsepower (bhp)
      38
    • Horsepower RPM
      6800
    • Torque (Ft Lbs)
      32
    • Cooling
      Liquid
    • Valves
      4
    • Valves Per Cylinder
      4
    • Valve Configuration
      SOHC
    • Bore (in)
      3.58
    • Stroke (in)
      3
    • Displacement (cc)
      495
    • Max power output
      38 HP @ 6800 RPM
    • Max torque
      32 ft. lbs. @ 5800 RPM
    • Transmission
      CVTech® Automatic P/R/N/H/L
    • Compression ratio
      10.3:1
  • TECHNICAL SPECIFICATIONS
    add remove
    • Length (mm)
      2870.2
    • Width (in)
      50
    • Height (in)
      70
    • Wheelbase (in)
      80
    • Ground Clearance (in)
      11.2
    • Dry Weight (lbs)
      1228
    • Fuel Capacity (gal)
      6.5
    • Engine Displacement to Weight (cc)
      0.4
  • WHEELS & TIRES
    add remove
    • Front Tire Diameter (in)
      26
    • Rear Tire Diameter (in)
      26
    • Tread Type
      All Terrain
    • Front Tire Width
      9
    • Front Wheel Diameter
      14
    • Rear Tire Width
      11
    • Rear Wheel Diameter
      14
    • Front Tire (Full Spec)
      26 x 9 - 14
    • Rear Tire (Full Spec)
      26 x 11 - 14
  • BRAKES
    add remove
    • Front Brake Type
      Hydraulic Disc
    • Rear Brake Type
      Hydraulic Disc
  • Color options
    add remove
    • Orange
    • Lava Orange
    • Titanium Gray
    • Pearl White
