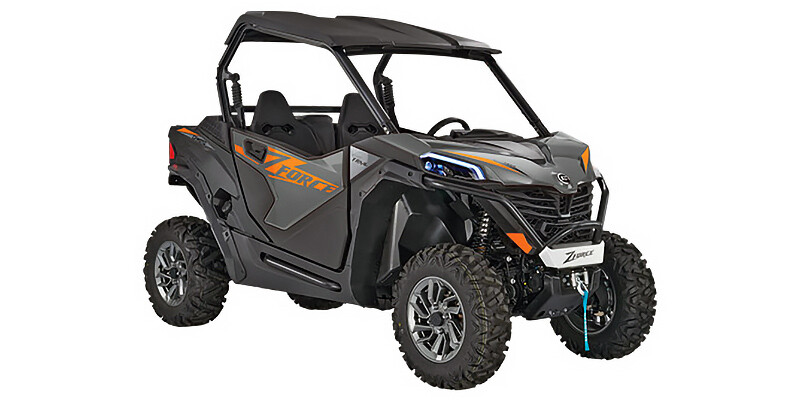

2023 ZFORCE 800 TRAIL

Specifications

• Engine

  add remove
  • Cylinders
    2
  • Engine Stroke
    4-Stroke
  • Horsepower (bhp)
    62
  • Horsepower RPM
    6700
  • Torque (Ft Lbs)
    53
  • Cooling
    Liquid
  • Valves
    8
  • Valves Per Cylinder
    4
  • Valve Configuration
    SOHC
  • Bore (in)
    3.6
  • Stroke (in)
    2.42
  • Displacement (cc)
    800
  • Max power output
    62 HP @ 6700 RPM
  • Max torque
    53 LB-FT @ 6000 RPM
  • Drive
    2WD/4WD/4WD LOCK
  • Transmission
    CVTECH® AUTOMATIC P/R/N/H/L
  • Compression ratio
    10.3:1
• TECHNICAL SPECIFICATIONS

  add remove
  • Length (mm)
    3048
  • Width (in)
    54.5
  • Height (in)
    71.6
  • Wheelbase (in)
    90
  • Ground Clearance (in)
    10
  • Dry Weight (lbs)
    1390
  • Fuel Capacity (gal)
    6.5
  • Engine Displacement to Weight (cc)
    0.59
• WHEELS & TIRES

  add remove
  • Front Tire Diameter (in)
    26
  • Rear Tire Diameter (in)
    26
  • Tread Type
    All Terrain
  • Front Tire Width
    9
  • Front Wheel Diameter
    14
  • Rear Tire Width
    11
  • Rear Wheel Diameter
    14
  • Front Tire (Full Spec)
    26 x 9 - 14
  • Rear Tire (Full Spec)
    26 x 11 - 14
• BRAKES

  add remove
  • Front Brake Type
    Hydraulic Disc
  • Rear Brake Type
    Hydraulic Disc
• Color options

  add remove
  • Galaxy Gray
  • Royal Blue
  • Nebula Black
