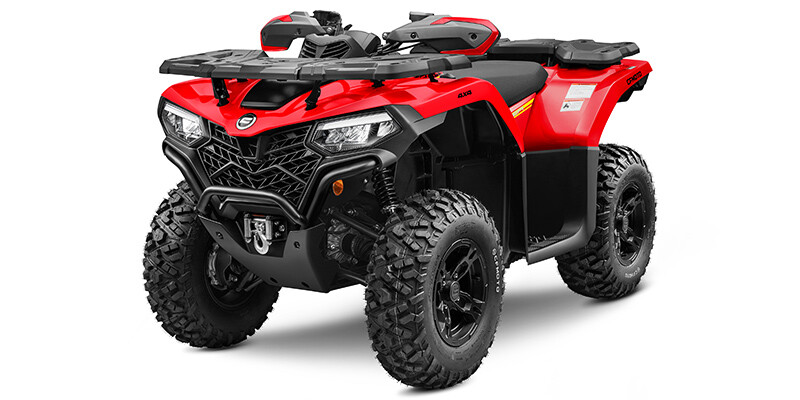

2025 CFORCE 500

2025 CFORCE 500

Description

Ripping down a rugged trail. Hauling sacks of feed to the back lot. Plowing snow in the driveway. There’s nothing the CFORCE 500 can’t handle. Because this amazing value comes with all the features you need, standard, to do what needs to get done. And all at a price that will have you grinning from ear to ear.

500cc Engine
Engine temperatures can climb during sustained low-rpm use, but the CFORCE 500 is engineered for comfort throughout your workday. Revised radiator design and improved cooling means leg area temperatures remain 25% lower than previous models. When it comes to long hours in the field, vehicle vibration is a critical factor that can wear you down. The CFORCE 500 has the lowest vibration in class across the entire torque range (vibration measured at handlebar grip, seat, and footrests).

Electronic Power Steering
An electronic control unit interprets steering input and provides appropriate feedback with respect to speed. At low speeds you get more assistance — less at higher speeds.

RideVision™ LED Lights
To ensure the best visibility, RideVision™ LED light technology is standard on the all-new CFORCE 500.

3.5" LCD Display
The CFORCE 500 has a 3.5-inch digital gauge and all-new user interface, providing better readability for key rider information.

Specifications

  • Engine
    add remove
    • Cylinders
      1
    • Horsepower (bhp)
      34
    • Torque (Ft Lbs)
      29
    • Cooling
      Liquid
    • Displacement (cc)
      500
    • Engine displacement
      500cc
    • Max power output
      34 HP @ 6800 RPM
    • Max torque
      29 LB-FT @ 6000 RPM
    • Cooling system
      Liquid cooled
    • Transmission
      CVTech® Automatic P/R/N/H/L
    • Drive system
      2WD/4WD/4WD lock
  • TRANSMISSION
    add remove
    • Transmission Type
      Continuously Variable (CVT)
    • Hi / Low Range
      Yes
    • Primary Drive (Rear Wheel)
      Shaft
    • Primary Drive (Engine / Transmission)
      Belt
    • Primary Drive (Front Wheel)
      Shaft
  • TECHNICAL SPECIFICATIONS
    add remove
    • Width (in)
      44
    • Height (in)
      45
    • Wheelbase (in)
      50
    • Ground Clearance (in)
      10.3
    • Dry Weight (lbs)
      713
    • Fuel Capacity (gal)
      4.5
    • Engine Displacement to Weight (cc)
      0.7
    • Towing Capacity (lbs)
      1350
    • Turning Radius (ft)
      9.1
  • SUSPENSION
    add remove
    • Rear Suspension Type
      Independent Double A-Arm
    • Number Rear Shock Absorbers
      2
    • Front Travel (in)
      7.5
    • Rear Travel (in)
      8.9
  • WHEELS & TIRES
    add remove
    • Front Tire Diameter (in)
      25
    • Rear Tire Diameter (in)
      25
    • Front Tire Width
      8
    • Front Wheel Diameter
      12
    • Rear Tire Width
      10
    • Rear Wheel Diameter
      12
    • Front Tire (Full Spec)
      25 x 8 R12
    • Rear Tire (Full Spec)
      25 x 10 R12
  • BRAKES
    add remove
    • Front Brake Type
      Hydraulic Disc
    • Rear Brake Type
      Hydraulic Disc
  • Color options
    add remove
    • Magma Red
    • Pearl White
    • TrueTimber Camo
